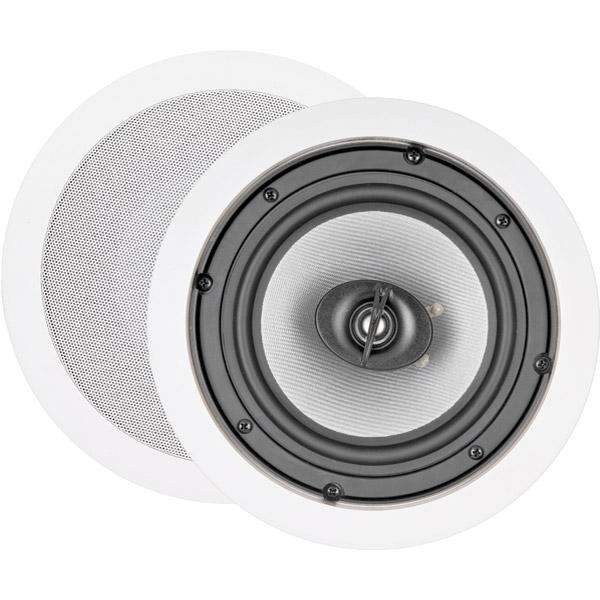

NXG Technology NX-C60 pair

NX-C60
6.5" 80-Watt 2-Way In-Ceiling Speaker System with Tilt-Swivel Tweeter Island

80 watts maximum power handling
Minimum diffraction tilt-swivel tweeter island
Compression molded mineral-filled polymer cone woofer with rubber surround
Pivoting tweeter can be directed toward listening area
Voice-matched to integrate seamlessly with other NXG speakers
Foam grille backing hides speaker components from view
Designed for use with today's digital audio and video systems
Integrated C-clamp mounting system
Powder coated metal grille
May be painted to match any décor
Frequency response: 55Hz-21kHz; 90dB sensitivity
9" x 3" D; cut out: 7 1/2" diameter

	NXG Technology NX-RK60C
	Rough-In Kit for NX-60DVC, NX-60C Sell Price: $16.99 - Quantity:

NXG Technology NX-PRO620I

6.5" 120-Watt 2-Way In-Ceiling Mounted Speaker System with Bridge Mounted Tweeter

120 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 40Hz-22kHz; 90dB sensitivity
9 1/8" x 3 3/4" D; cut out: 8 1/8" diameter
Sold as Pair $89.99/pair

Photo not Available

NXG Technology NX-PRO830I

8" 150-Watt 3-Way In-Ceiling Mounted Speaker System

150 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
2 1/2” metallic anodized polycarbonate cone midrange
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 35Hz-22kHz; 90dB sensitivity
10 3/4" x 4" D; cut out: 9 1/2" diameter

Weight: 14.12 lbs

Sold as Pair - $139.99/pair

	NXG Technology NX-RK50C
	Rough-In Kit for NX-50C, NX-50DV Sell Price: $10.99 - Quantity:

NXG Technology NX-PRO103I

8" 150-Watt 3-Way In-Ceiling Mounted Speaker System

150 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
2 1/2” metallic anodized polycarbonate cone midrange
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 35Hz-22kHz; 90dB sensitivity
10 3/4" x 4" D; cut out: 9 1/2" diameter
Sold as Pair -$159.99 /pair

Weight: 14.12 lbs

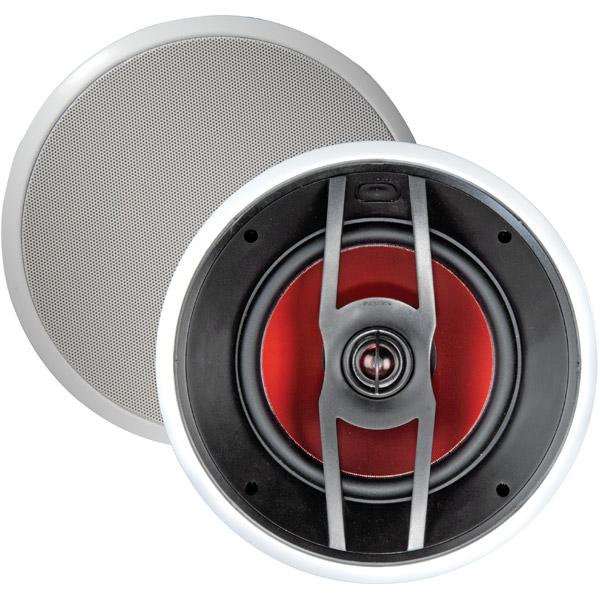

NXG Technology NX-PRO820I

8" 120-Watt 2-Way In-Ceiling Speaker System

120 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 37Hz-22kHz; 90dB sensitivity
10 3/4" x 4" D; cut out: 9 1/2" diameter
Sold as Pair $85.99 / pair

Weight: 13.26 lbs

NXG Technology NX-PRO622I

6.5" 120-Watt 2-Way Dual Voice Coil Single Point Stereo/Surround In-Ceiling Mounted Speaker System

120 watts maximum power handling
Unique design allows speaker to play stereo from a single location
Dual minimum diffraction pivoting 3/4" fluid cooled, high tenacity teteron dome tweeters
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 40Hz-22kHz; 90dB sensitivity
9 1/8" x 3 3/4" D; cut out: 8 1/8" diameter
Sold individually $79.99

Weight: 5.62 lbs

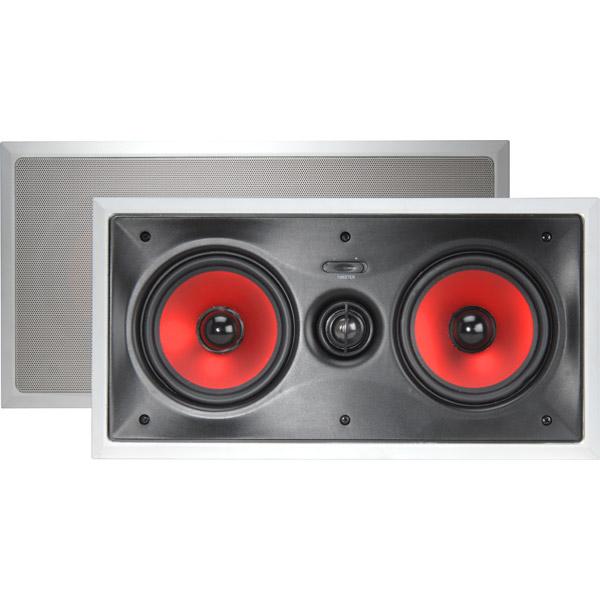

NXG Technology NX-PRO552I

Dual 5.25" 120-Watt Video-Shielded 2-Way LCR In-Wall Mounted Speaker System

120 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
Dual magnetically shielded metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Baffle mounted IR capability
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 45Hz-22kHz
15" W x 7 5/8" H x 3 1/2" D; cut out: 13 7/8" W x 6 3/8" H
Sold individually
Sold as single unit $75.99 each

Weight: 9.4 lbs

Photo not Available	NXG Technology NX-RK80C
	Rough-in kit for NX-PRO80C Sell Price: $19.99 - Quantity:

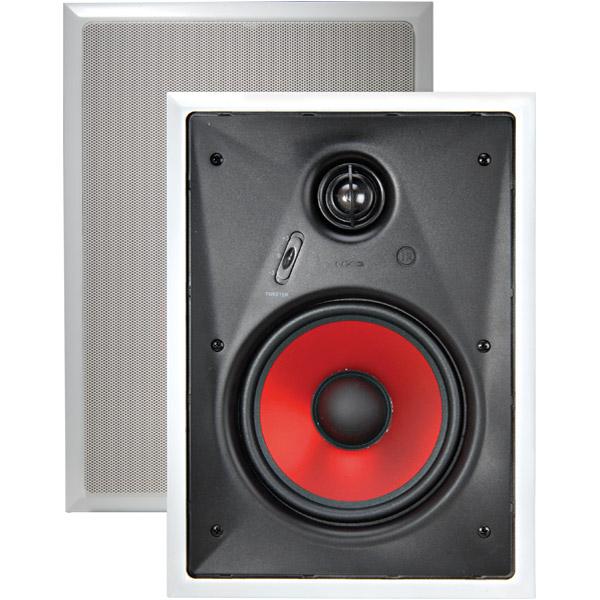

NXG Technology NX-PRO602I

6.5" 120-Watt 2-Way In-Wall Speaker System

120 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Baffle mounted IR capability
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 40Hz-22kHz; 90dB sensitivity
9" W x 12 1/2” H x 3 1/2" D; cut out: 7 3/8" W x 10 7/8" H
Sold as Pair - $89.99

Weight: 11.36 lbs

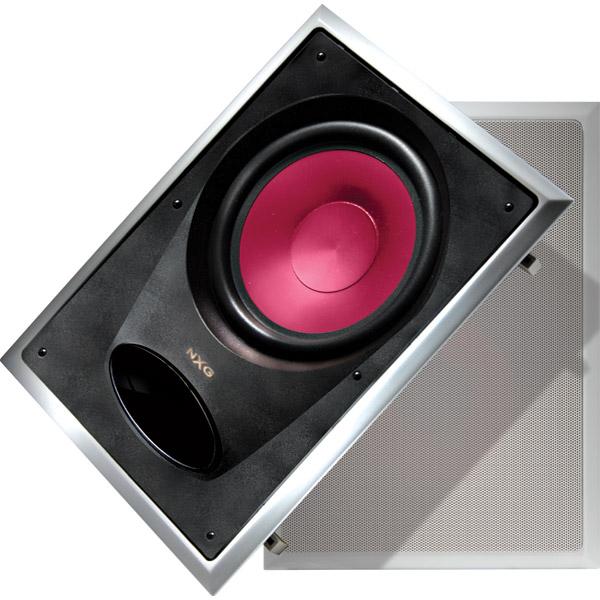

NXG Technology NX-PRO10SUB

10" 175-Watt In-Wall Mounted Subwoofer Speaker System

175 watts maximum power handling
Dual voice coil glass fiber cone woofer with rubber surround
Screen covered woofer magnet vent hole to minimize debris and fiberglass entry
Optimized port tube maximizes bass performance when installed in standard 2 x 4 wall cavity
Optimized 12dB electro-acoustic crossover with gold input terminals
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 32Hz-140Hz; 90dB sensitivity
12" W x 16 3/8" H x 3 1/2" D; cut out: 10 5/8" W x 15 1/8" H
Sold individually -$129.99

Weight: 15 lbs

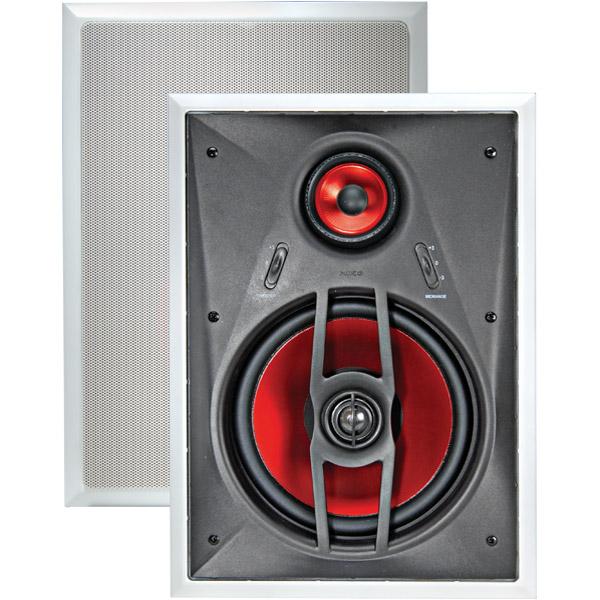

NXG Technology NX-PRO803I

8" 150-Watt 3-Way In-Wall Speaker System
- 150 watts maximum power handling
Minimum diffraction pivoting 1" fluid cooled, high tenacity teteron dome tweeter
2 1/2” pivoting metallic anodized polycarbonate cone midrange
Metallic anodized graphite filled injection molded RCT cone woofer with rubber surround
Optimized 12dB electro-acoustic crossover utilizing Mylar® capacitors, air core inductors and gold input terminals
Baffle mounted micro switches allow speakers to be adjusted to better match room acoustics
Baffle mounted IR capability
Reduced resonance, minimum diffraction, polycarbonate baffle
Dog leg type mounting system
Corrosion resistant powder coated aluminum grille
Perforated woofer basket helps shield driver from insulation and debris
Foam grille backing hides speaker components from view
May be painted to match any décor
Frequency response: 35Hz-22kHz; 90dB sensitivity
- Cut out: 12 3/4" x 8 7/8"

	NXG Technology NX-RK801
	Rough-in kit for NX-PRO9300/NX-802W Sell Price: $22.99 - Quantity:

	NXG Technology NX-V70 IVORY
	70 Watt Stereo Volume Control - 12 step attenuation - Removable terminal blocks accept up to 14-gauge wire - Frequency response: 20Hz-20kHz - Includes Decora-style insert, trim plate and knob Sell Price: $24.99 - Quantity:

	NXG Technology NX-V70 WHITE
	70 Watt Stereo Volume Control - Redesigned smaller control with 12 step attenuation for better fit and easier installation - Removable terminal blocks accept up to 14-gauge wire - New soft-touch switch for smoother operation - Frequency response: 20Hz-20kHz - Includes Decora-style insert, trim plate and knob Sell Price: $24.99 - Quantity:

Photo not Available

NXG Technology NX-VM80 WHITE

80 Watt Impedance Matching Stereo Volume Control
- Power handling: 80 watts RMS per channel
- Impedance matching for 2, 4, 8 or 16 speaker pairs assignable switch rather than clumsy jumpers
- Redesigned smaller control with 12 step attenuation for better fit and easier installation
- Removable terminal blocks accept up to 14-gauge wire
- New soft-touch switch for smoother operation
- Frequency response: 20Hz-20kHz
- Includes Decora-style insert, trim plate and knob

Photo not Available

NXG Technology NX-VM80 IVORY

	NXG Technology NX-VMS100 IVORY
	100 Watt, Slide-Style, Impedance Matching Volume Control - Impedance matching 2x, 4x, 8x or 16x positions - Stereo non-impedance matching 1x position - Soft touch 12 step slide attenuation - Removable terminal blocks accept up to 14-gauge wire - Frequency response: 20Hz-20kHz Sell Price: $35.99 - Quantity:

	NXG Technology NX-VMS100 WHITE
	100 Watt, Slide Style, Impedance Matching Volume Control - Impedance matching 2x, 4x, 8x or 16x positions - Stereo non-impedance matching 1x position - Soft touch 12 step slide attenuation - Removable terminal blocks accept up to 14-gauge wire - Frequency response: 20Hz-20kHz Sell Price: $35.99 - Quantity:
